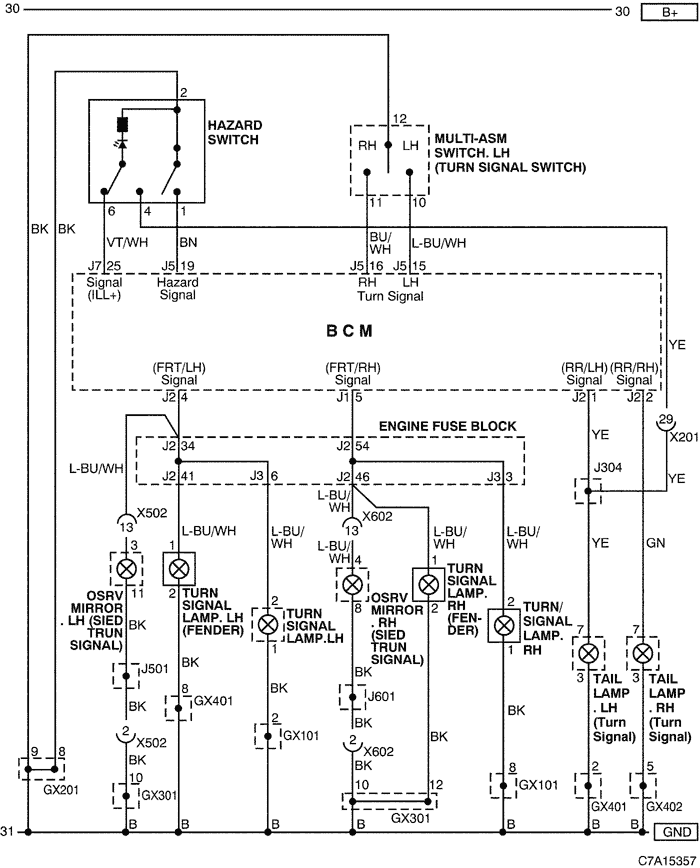

16. HAZARD & TURN SIGNAL LAMP CIRCUIT
a. CONNECTOR INFORMATION
connector no
(pin no, color) |
connecting wiring harness |
connector position |
| X201 (92 Pin, Black) |
Body - I.P |
Below to the "A" pillar |
| X502 (18 Pin, Colorless) |
Body - Front LH Door |
Under the left "A" Pillar |
| X602 (18 Pin, Colorless) |
Body - Front RH Door |
Under the right "A" Pillar |
| GX101 (Black/Gray) |
Front |
Behind the left HeadLamp |
| GX201 (Black/Gray) |
I/P |
Behind Steering Column - Lower |
| GX301 (Black/Gray) |
Body |
Under the right seat cushion |
| GX401 (Black/Gray) |
Body |
Right the luggage compartment |
| GX402 (Black/Gray) |
Body |
Right the luggage compartment |

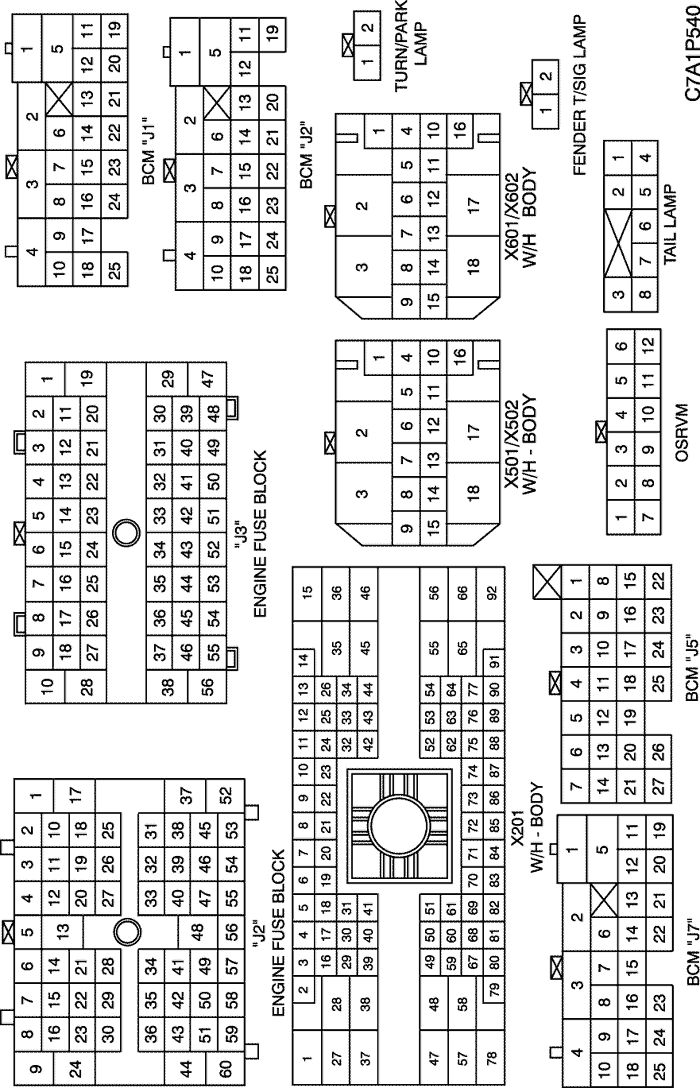

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
