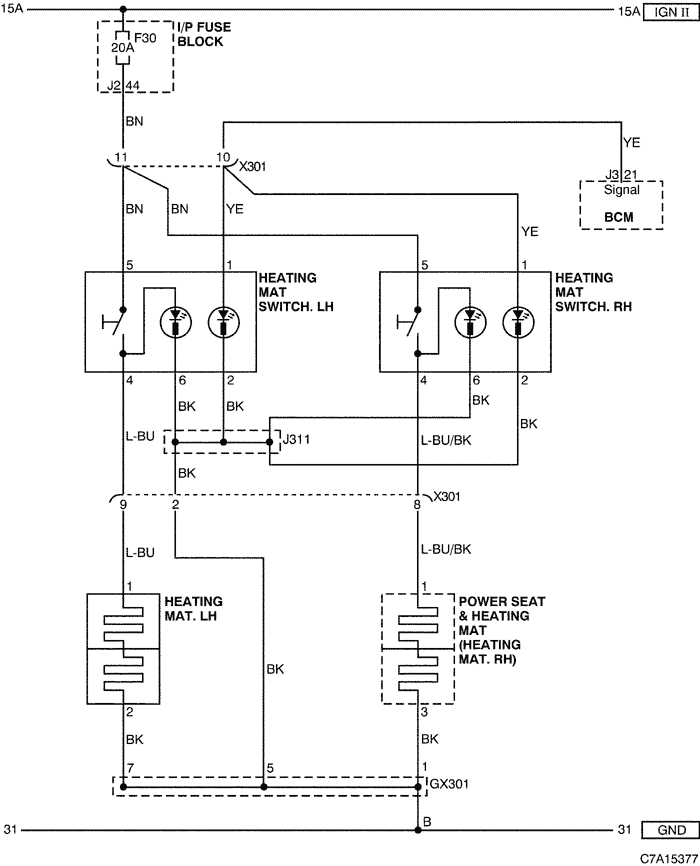

39. HEATING MAT CIRCUIT
a. CONNECTOR INFORMATION
connector no
(pin no, color)
connecting wiring harness
connector position
X301 (12 Pin, Colorless)
Console - Body
Below the floor console
GX301 (Black/Gray)
Body
Under the right seat cushion
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
w/h instrument panel
w/h console
w/h body
