Captiva

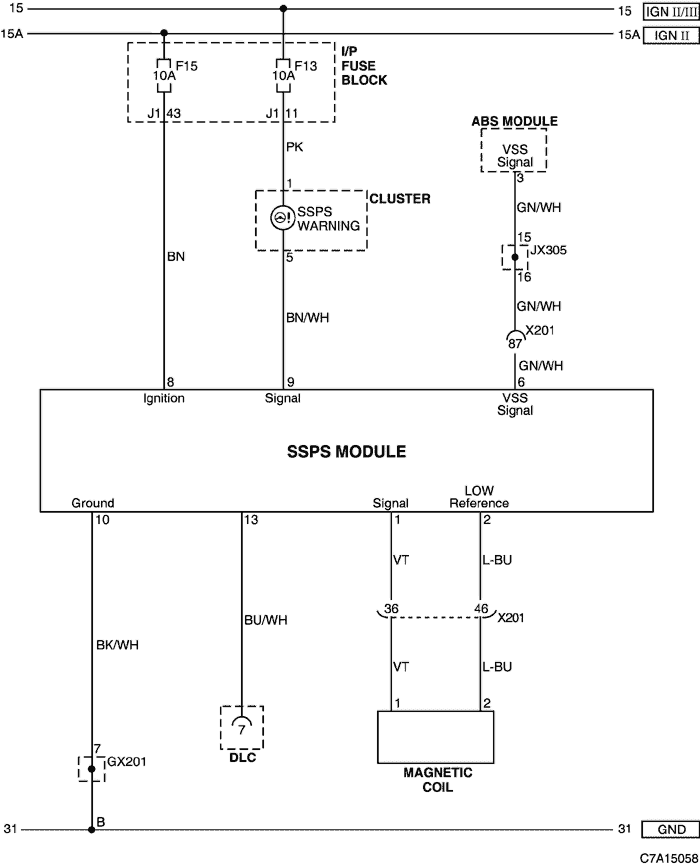

33. SSPS (SPEED SENSITIVE POWER STEERING) CIRCUIT
a. CONNECTOR INFORMATION
connector no
(pin no, color)
connecting wiring harness
connector position
X201 (92 Pin, Black)
Body - I.P
Below to the "A" pillar
GX201 (Black/Gray)
I/P
Behind Steering Column - Lower
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
w/h instrument panel
w/h body
d. SPLICE PACK
