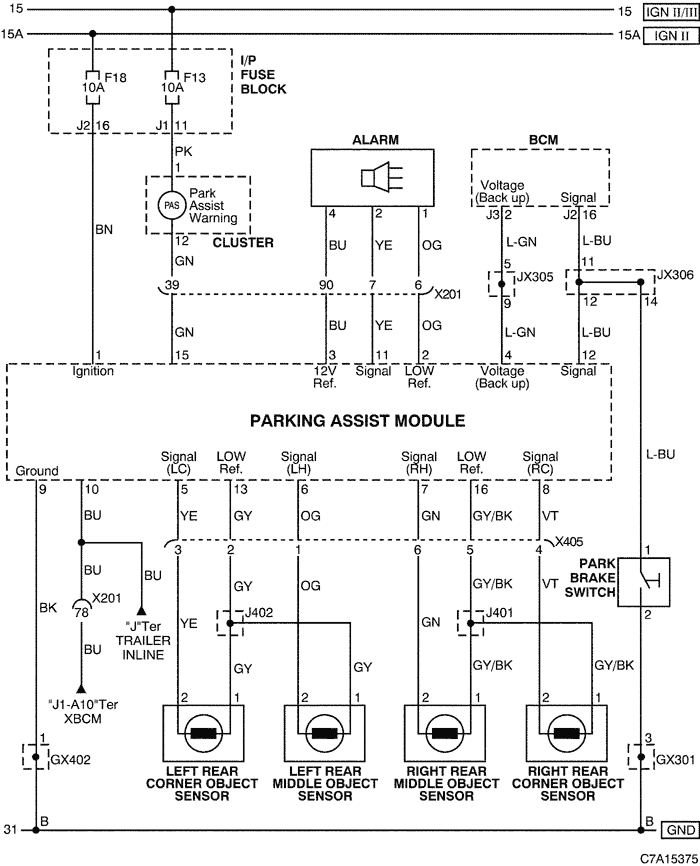

34. PARKING ASSIST MODULE CIRCUIT

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		 connecting wiring harness connector position
X201 (92 Pin, Black) Body - I.P Below to the "A" pillar
X405 (6 Pin, Black) Body - Rear Objective Alarm Sensor Behind the right Tail Lamp
GX301 (Black/Gray) Body Under the right seat cushion
GX402 (Black/Gray) Body Right the luggage compartment

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
